37kW 400V 3 Phase Enclosed Inverter

Model Number
HIB3700EN400V
Generally a stocked item but please contact us for availability on + 44 (0)1686 688948
More Information
£3,121.56 £2,601.30

37kW, 400V Three Phase Input, 400V Three Phase Output Enclosed Inverter Drive.

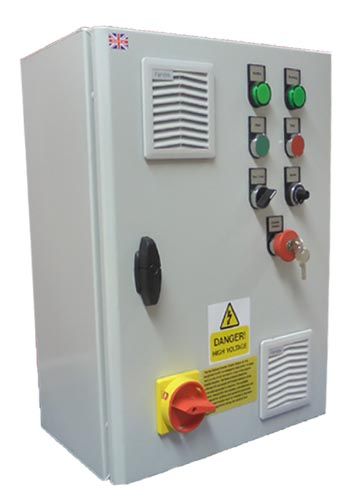

1000mm x 800mm x 400mm Powder coated steel enclosure contains the following:

  • Door Interlocked Isolator
  • MCB Protection (Control)
  • Fuse Protection (Power and Control)
  • 3 Phase 37kW Imoticon Inverter
  • 110V Transformer
  • Green Healthy Lamp
  • Green Running Lamp
  • Green Start Pushbutton
  • Red Stop Pushbutton
  • IP Rated Speed Potentiometer
  • Fwd/Rev Switch
  • Inverter Disable Pushbutton
  • Fan and Filter
  • Thermostat
  • Tri rated cable
  • Terminals for Motor Connections
  • Terminals for Remote Start / Stop
  • Drawings Supplied
  • IP 54 rating

Supply required: 415VAC + E

Availability – Generally a stocked item but please contact us for availability

Specifications:
When start button is pressed (providing the inverter disable button is not pressed), the inverter will start and ramp up to the speed set by the speed potentiometer.
When stop button is pressed, the inverter will ramp to a stop.
Potentiometer controls the inverter output speed.
Fwd/Rev Switch controls the direction of the motor. Forward is clockwise and reverse is anti-clockwise.
Inverter Disable Button disables the output of the drive, and the motor will coast to a stop. (This is not an Emergency Stop button and should not be used for safety isolation.)
Healthy lamp will be illuminated when the HIB inverter is in the healthy state (not tripped).
Running lamp will be illuminated when the HIB inverter is running (inverter output enabled).

Enclosed VSD

View our range of enclosed Variable Speed Drives (VSDs) that are designed to enhance the way you control and manage your electric motors. These fully enclosed VSD units offer a combination of convenience, efficiency, and reliability.

With a robust and compact design, our enclosed VSDs are a perfect fit for a wide range of industrial applications. They provide seamless control for your electric motors, ensuring smooth and precise speed adjustments, soft starts, and soft stops. Whether you're looking to enhance the performance of your machinery, optimize energy consumption, or reduce maintenance costs, our enclosed VSDs are your solution.


Standard model generally kept in stock.

Please call ahead for lead times regarding options and modifications (such as fan and vent covers in panel sides, removal of fwd/rev switch, etc)

If this isn't what you were looking for, we also make custom control panels to meet any requirements. Give us a call on +44 (0)1686 688948 or email us at enquiries@motorcontrolwarehouse.co.uk

Power kW 37kW
Height 1000mm
Encl Rating IP54
Power HP 50HP
Input Voltage 400VAC +/-10%
Width 800mm
Material Steel
Onboard EMC Filter Class C3
Input Current 72 Amps
Depth 400mm
Model Number HIB3700EN400V
Overload 200%
Motor Current 75 Amps
Weight 72.500000
Inverter Type ID70040T03700
MCB Break Capacity 10kA
