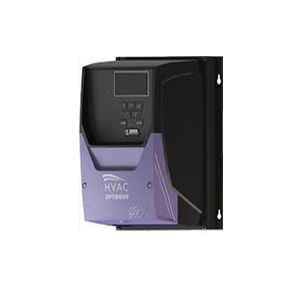

Invertek ODV-2-22075-1KF1X-TN Optidrive HVAC - Service Ex

Invertek inverter drive, HVAC, IP66 Non-switched, ODV, 0.75kw ODV-2-22075-1KF1X-TN Service Ex

More Information
£234.04 £195.03

Invertek ODV-2-22075-1KF1X-TN Service Ex, HVAC, IP66 Non-switched. Single phase in, three phase out inverter. Quadratic output for energy optimisation. Internal PID control with feedback display, hand and auto buttons. On board RFI filter. IP66 protects from strong jets of water and is dust-tight. Dedicated to Centrifugal fan and pump applications. Here is a link to the Invertek website:

Service Exchange with 12 Month warranty

Power kW 0.75
Power HP 1
Input Voltage 240V
Output Voltage 0 to input V
Input Phases 1
Output Phases 3
Output Current 4.3Amps
Input Current 8.5Amps
Encl Rating IP66
Width 112mm
Height 221mm
Depth 185mm
Frame Size 2
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 3.500000
Control Type V/F type
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 3
Digital Outputs 3
Analogue I/Ps 3
Analogue O/Ps 1
Output relay(s) 2
Serial Comms Modbus, Bacnet
Approvals UL. cUL, C- Tick, Gost R, ROHS
