QCX2-5.5 to 8.0A DOL Starter

Model Number
DOL30EN400V

The QCX2-5.5 to 8.0A model covers the motor current range of 5.5 to 8.0Amp. 3kW

More Information
£47.30 £39.42

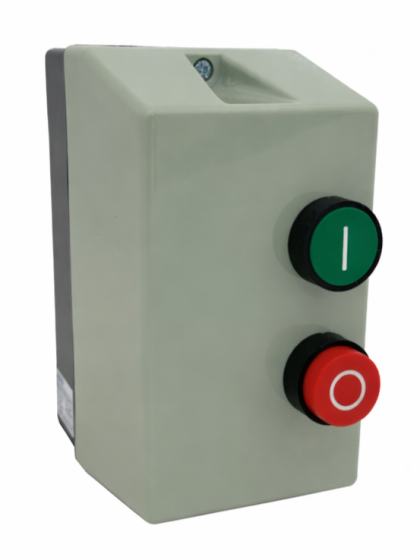

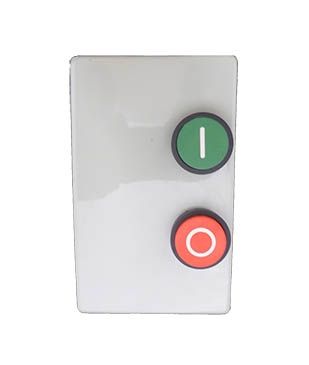

The QCX2 range of enclosed direct on line motor starters comes in an IP42 hard plastic, double insulated package. Complete with motor thermal overload, stop and start buttons. Compact, reliable motor starting from Motor Control Warehouse. The QCX2-5.5 to 8.0A model covers the motor current range of 5.5 to 8.0Amp.



Model Number DOL30EN400V
Power kW 3kW
Input Phases 3
Output Phases 3
Trip Class 10
Input Voltage 400Vac
Coil Voltage 400Vac
Encl Rating IP42
Overload 5.5Amp to 8.0Amp
Material Hard plastic
Motor Current 5.5Amp to 8.0Amp
Depth 140mm
Length 150mm
Width 88mm
Approvals CE
Weight 0.900000
