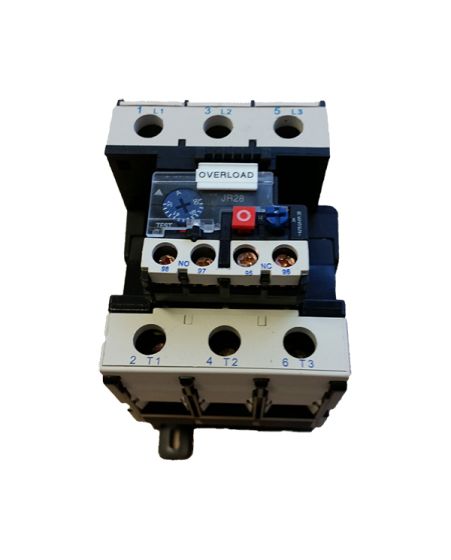

Motor Overload JR28-25 1322 17-25A, with Base
A range of motor thermal overloads with mounting bases covering the current range from 4 Amp to 104 Amps.
More Information
£11.70
£9.75
A motor thermal overload with mounting base covering the current range from 17 Amp to 25 Amps. These motor overloads are stand alone devices and can be din rail mounted. They have adjustable overload current and a manual or automatic reset facility. They also have a normally open and normally closed set of volt free contacts that change state after a trip.
Related Download 1 JR28 Thermal Overload Data
Related Download 2 JR28 Overload Dimensions
Trip Class
10
Input Voltage
415V
Output Voltage
415V
Input Phases
3
Output Phases
3
Overload
17 to 25 Amp range
Frame Size
JR25-28
Width
45mm
Height
80mm
Depth
82mm
Weight
1.000000
Approvals
CE
Model No
JR28-25 1322 17-25
Mounting Type
Din Rail
Frame Material
Plastic
Poles
3
