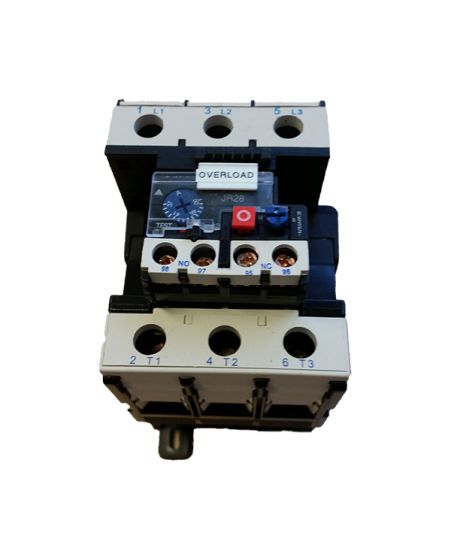

Motor Overload JR28-93 3363 63-80A, with Base
A range of motor thermal overloads with mounting bases covering the current range from 4 Amp to 104 Amps.
More Information
£20.70
£17.25
A motor thermal overload with mounting base covering the current range from 63 Amp to 80 Amps. These motor overloads are stand alone devices and can be din rail mounted. They have adjustable overload current and a manual or automatic reset facility. They also have a normally open and normally closed set of volt free contacts that change state after a trip.
Related Download 1 JR28 Thermal Overload Data
Related Download 2 JR28 Overload Dimensions
Trip Class
10
Input Voltage
415V
Output Voltage
415V
Input Phases
3
Output Phases
3
Overload
63 to 80 Amp range
Frame Size
JR28-93
Width
72mm
Height
83mm
Depth
119mm
Weight
1.000000
Approvals
CE
Model No
JR28-93 2363 63-80
Mounting Type
Din Rail
Frame Material
Plastic
Poles
3
