18.5kW 400V 3 Phase Enclosed Inverter
18.5kW, 400V Three Phase Input, 400V Three Phase Output Enclosed Inverter Drive.

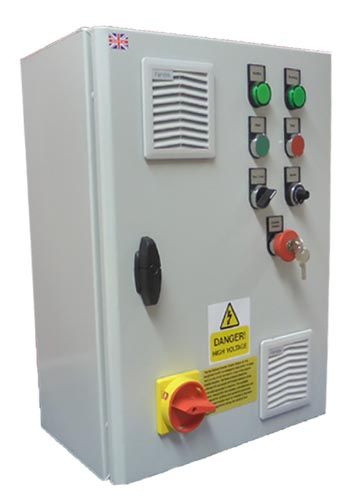

800mm x 600mm x 300mm Powder coated steel enclosure contains the following:
- Door Interlocked Isolator
- MCB Protection (Power and Control)
- Fuse Protection (Control)
- 3 Phase 18.5kW Imoticon Inverter
- 110V Transformer
- Green Healthy Lamp
- Green Running Lamp
- Green Start Pushbutton
- Red Stop Pushbutton
- IP Rated Speed Potentiometer
- Fwd/Rev Switch
- Inverter Disable Pushbutton
- Fan and Filter
- Thermostat
- Tri rated cable
- Terminals for Motor Connections
- Terminals for Remote Start / Stop
- Drawings Supplied
- IP 54 rating
Supply required: 415VAC + E
Availability – Generally a stocked item but please contact us for availability
When stop button is pressed, the inverter will ramp to a stop.
Potentiometer controls the inverter output speed.
Fwd/Rev Switch controls the direction of the motor. Forward is clockwise and reverse is anti-clockwise.
Inverter Disable Button disables the output of the drive, and the motor will coast to a stop. (This is not an Emergency Stop button and should not be used for safety isolation.)
Healthy lamp will be illuminated when the HIB inverter is in the healthy state (not tripped).
Running lamp will be illuminated when the HIB inverter is running (inverter output enabled).
Enclosed VSD
View our range of enclosed Variable Speed Drives (VSDs) that are designed to enhance the way you control and manage your electric motors. These fully enclosed VSD units offer a combination of convenience, efficiency, and reliability.
With a robust and compact design, our enclosed VSDs are a perfect fit for a wide range of industrial applications. They provide seamless control for your electric motors, ensuring smooth and precise speed adjustments, soft starts, and soft stops. Whether you're looking to enhance the performance of your machinery, optimize energy consumption, or reduce maintenance costs, our enclosed VSDs are your solution.
Standard model generally kept in stock.
Please call ahead for lead times regarding options and modifications (such as fan and vent covers in panel sides, removal of fwd/rev switch, etc)
If this isn't what you were looking for, we also make custom control panels to meet any requirements. Give us a call on +44 (0)1686 688948 or email us at enquiries@motorcontrolwarehouse.co.uk
