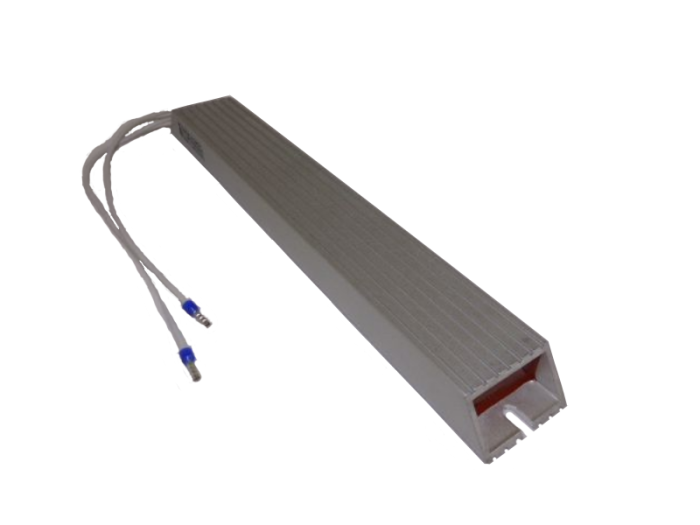

BW154/250/150 Dynamic Braking Resistor

Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.

The BW154/250/150 can be mounted on to the cubicle backplate for good heat dissipation.

More Information
£66.30 £55.25

Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.

The BW154/250/150 can be mounted vertically on to the cubicle backplate for good heat dissipation.

The resistor goes highly resistive under overload.



Compatible with Various
Model No BW154/250/150
IP Rating IP20
Weight 0.400000
Height 290mm
Width 40mm
Depth 20mm
Mounting Type Mounts on to backplate
kW Rating Peak ---
Rating Watts 250W
Input Voltage 900Vdc
Resistance 150 Ohm
