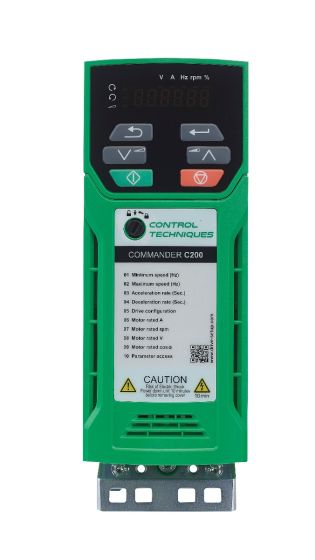

CT Commander C200-02200056 1.1kW 230V

Control Techniques Commander C200-02200056, 230V single or 230V 3 phase input, 230V 3 phase output, 1.1kW, 5.6A, IP20.

More Information
£200.64 £167.20

Control Techniques Commander C200-02200056, 230V single or 230V 3 phase input, 230V 3 phase output, 1.1kW, 5.6A, IP20

For automation processes like conveyors, fans, pumps and mixers, Commander C200 offers extremely quick setup and installation.

The C200 has one parameter that automatically changes the control terminals to satisfy most simple applications.

Commander C200 is designed for easy migration from Commander SK.

Below is a link to the Control Techniques website and  Commander C200 section.

https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives

Commander C 5 Year Warranty

By submitting the form, using the link below, your Commander C manufacturer’s warranty will be extended to 5 years as long as the drive is registered within six (6) months of the date of purchase (Terms & Conditions apply).

https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives/5-year-warranty

Power kW 1.1
Power HP 1.5
Input Voltage 240V
Output Voltage 0 to input
Input Phases 1 or 3
Output Phases 3
Output Current 5.6A
Input Current 14.9A / 7.4A
Encl Rating IP20
Width 75mm
Height 205mm
Depth 150mm
Frame Size 2
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 1.000000
Control Type V/f, Open loop vector & RFC-A
Input Freq 48-62Hz
Output Freq 0-550Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms With option module
Approvals CE, UL
