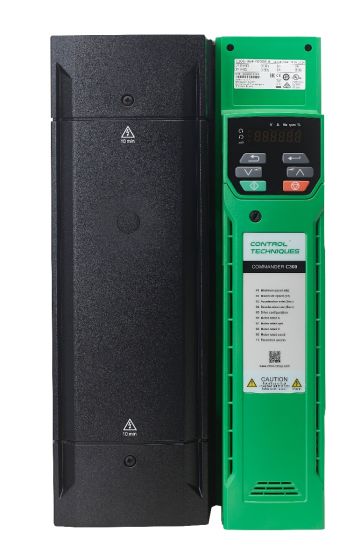

CT Commander C200-06400420 18.5kW 400V 3 Phase

Control Techniques Commander C200-06400420, 400V 3 phase input, 400V 3 phase output, 18.5kW, 42A, IP20.

More Information
£1,523.04 £1,269.20

Control Techniques Commander C200-06400420, 400V 3 phase input, 400V 3 phase output, 18.5kW, 42A, IP20.

18.5kW Heavy Duty @ 150% overload

22kW Normal Duty (Fan/pump) @ 110% overload

For automation processes like conveyors, fans, pumps and mixers, Commander C200 offers extremely quick setup and installation.

The C200 has one parameter that automatically changes the control terminals to satisfy most simple applications.

Commander C200 is designed for easy migration from Commander SK.

Below is a link to the Control Techniques website and Commander C200 section.

https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives

Commander C 5 Year Warranty

By submitting the form, using the link below, your Commander C manufacturer’s warranty will be extended to 5 years as long as the drive is registered within six (6) months of the date of purchase (Terms & Conditions apply).

https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives/5-year-warranty

Power kW 18.5
Power HP 25
Input Voltage 4
Output Voltage 0 to input
Input Phases 3
Output Phases 3
Output Current 42A
Input Current 41Amps
Encl Rating IP20
Width 210mm
Height 389mm
Depth 221mm
Frame Size 6
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 14.000000
Control Type V/f, Open loop vector & RFC-A
Input Freq 48-62Hz
Output Freq 0-550Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms With option module
Approvals CE, UL
