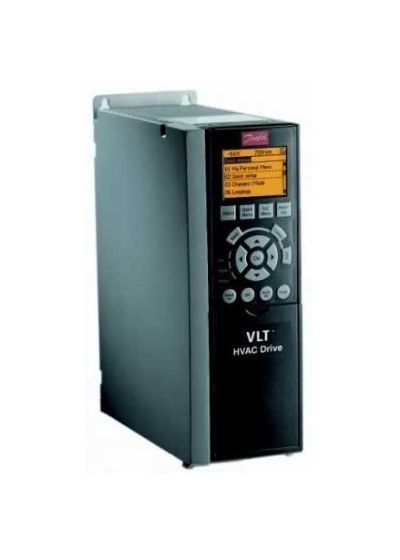

Danfoss FC102 IP20 37kW 400V 3 phase AC Inverter Drive C3 EMC

The Danfoss FC102 Inverter Drive is designed specifically to control the speed of fan and pump motors.

More Information
£3,853.32 £3,211.10

Danfoss FC-102 AC Inverter for 37kW (50HP) 400V 3 Phase Fan / Pump control. This is an IP20 (cabinet mount inverter).

Long Part Number

FC-102P37KT4E20H3XGXXXXSXXXXAXBXCXXXXDX

Short Part Number

FC102 131F9931

Features at a glance for the FC102 Inverter

There’s no need for external cooling or oversizing as the maximum ambient temperature is 50°C without derating

PLC capacity is often unnecessary thanks to the Smart Logic Controller

A low initial investment and easy upgrades are possible thanks to the modular concept with a wide range of options

The need for external control and conversion equipment is avoided due to integrated pump, fan and compressor functionality

5–15% energy is saved as a result of the Automatic Energy Optimization function

Less gateway solutions are needed thanks to a wide range of HVAC protocols for building management system controller connectivity


Power kW 37kW
Power HP 50HP
Input Voltage 400V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 73A
Input Current 66A
Encl Rating IP20
Width 242mm
Height 650mm
Depth 260mm
Frame Size B4
Overload 110%
Duty Fan/Pump
Dynamic Braking No
Weight 23.500000
Control Type V/f type
Input Freq 50 / 60Hz
Output Freq 0 to 590Hz
Max Temp 50 Deg C
Digital Inputs 4
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 2
Serial Comms RS485
Approvals CE, UL, EAC
