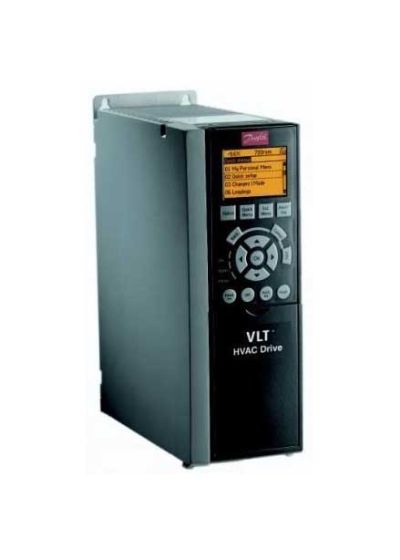

Danfoss FC102 IP66 15kW 400V 3 phase AC Inverter Drive C3 EMC

The Danfoss FC102 Inverter Drive is designed specifically to control the speed of fan and pump motors.

More Information
£2,250.66 £1,875.55

Danfoss FC-102 AC Inverter for 15kW (20HP) 400V 3 Phase Fan / Pump control. This is an IP66 (wall mount inverter).

Long Part Number

FC-102P15KT4E66H3XGXXXXSXXXXAXBXCXXXXDX

Short Part Number

FC102 131B9317

Features at a glance for the FC102 Inverter

There’s no need for external cooling or oversizing as the maximum ambient temperature is 50°C without derating

PLC capacity is often unnecessary thanks to the Smart Logic Controller

A low initial investment and easy upgrades are possible thanks to the modular concept with a wide range of options

The need for external control and conversion equipment is avoided due to integrated pump, fan and compressor functionality

5–15% energy is saved as a result of the Automatic Energy Optimization function

Less gateway solutions are needed thanks to a wide range of HVAC protocols for building management system controller connectivity


Power kW 15kW
Power HP 20HP
Input Voltage 400V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 32A
Input Current 29A
Encl Rating IP66
Width 242mm
Height 480mm
Depth 260mm
Frame Size B1
Overload 110%
Duty Fan/Pump
Dynamic Braking No
Weight 14.000000
Control Type V/f type
Input Freq 50 / 60Hz
Output Freq 0 to 590Hz
Max Temp 50 Deg C
Digital Inputs 4
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 2
Serial Comms RS485
Approvals CE, UL, EAC
