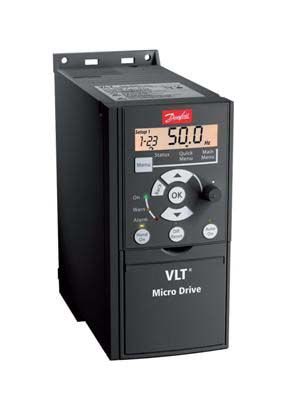

Danfoss FC51 Micro Drive, 132F0005, 1.5kW, 240V

The Danfoss FC51 Micro Drive is a general purpose AC inverter drive.

More Information
£334.32 £278.60

The Danfoss FC51 Micro Drive is a general purpose AC inverter drive for applications from 0.37 to 7.5kW. The small drive with high performance.

Long Part Number FC-051P1K5S2E20H3BXCXXXSXXX

Short Part Number FC51 132F0005

Features at a glance for the FC51 Micro Drive

- FC51 Micro Drive shares user-friendliness of VLT family
- Plug and play – minimum effort, minimum time
- Minimum Commissioning – save time
- Copy settings via local control panel
- Intuitive parameter structure
- Optimum heat dissipation – longer lifetime
- High quality electronics/capacitors – low lifetime cost
- All drives full load tested from factory – high reliability
- Earth fault, temperature and short circuit protection
- Circuit boards well protected and coated

Power kW 1.5kW
Power HP 2.0HP
Input Voltage 240V
Output Voltage 0 to 240V
Input Phases 1
Output Phases 3
Output Current 6.8A
Input Current 18.7A
Encl Rating IP20
Width 75mm
Height 230mm
Depth 168mm
Frame Size M2
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 2.100000
Control Type Vector
Input Freq 50 / 60Hz
Output Freq 0 to 400Hz
Max Temp 40 Deg C
Digital Inputs 5
Digital Outputs 0
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms RS485
Approvals CE, UL, EAC
