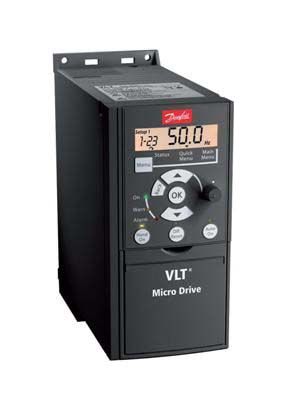

Danfoss FC51 Micro Drive, 132F0018, 0.75kW, 400V

The Danfoss FC51 Micro Drive is a general purpose AC inverter drive.

More Information
£359.46 £299.55

The Danfoss FC51 Micro Drive is a general purpose AC inverter drive for applications from 0.37 to 7.5kW. The small drive with high performance.

Long Part Number FC-051PK75T4E20H3XXCXXXSXXX

Short Part Number FC51 132F0018

Features at a glance for the FC51 Micro Drive

- FC51 Micro Drive shares user-friendliness of VLT family
- Plug and play – minimum effort, minimum time
- Minimum Commissioning – save time
- Copy settings via local control panel
- Intuitive parameter structure
- Optimum heat dissipation – longer lifetime
- High quality electronics/capacitors – low lifetime cost
- All drives full load tested from factory – high reliability
- Earth fault, temperature and short circuit protection
- Circuit boards well protected and coated


Power kW 0.75kW
Power HP 1.0HP
Input Voltage 400V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 2.2A
Input Current 3.5A
Encl Rating IP20
Width 70mm
Height 205mm
Depth 148mm
Frame Size M1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 1.300000
Control Type Vector
Input Freq 50 / 60Hz
Output Freq 0 to 400Hz
Max Temp 40 Deg C
Digital Inputs 5
Digital Outputs 0
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms RS485
Approvals CE, UL, EAC
