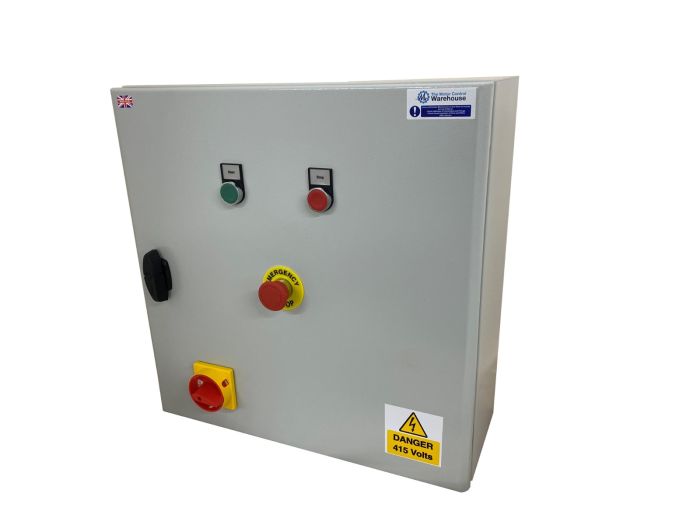

Enclosed DOL Motor Starter with DC Injection Brake Unit, 5.5kW

Enclosed DOL, DC Injection Brake Unit, 5.5kW, IP65

More Information
£681.12 £567.60

The Enclosed Solbrake Direct On Line Motor Starter unit - Solid State Motor Brake provides fast, smooth, frictionless braking of three-phase squirrel-cage motors by injecting controlled DC current to the motor windings, after Mains contactor opened. This induces a stationary magnetic field, which exerts a braking torque on the rotor. Stopping time can be similar to the time it takes to reach full speed with Direct-On-Line starting. This unit is ready to go and just needs power and motor cables. Replacement for the Allen West Easy Brake.

The Solbrake can be used to help ensure your machine meets the HSE PUWER regulations PUWER regulations

Features:

- Robust IP65 enclosure.

- Key release E-Stop button.

- Tri rated cable.

- Adjustable DC Brake torque.

- Adjustable DC Brake time.

- Interlocked mains isolator.

- Input MCB (option).



Before ordering, please call us for availability

Power kW 5.5kW
Power HP 7.5HP
Input Voltage 415V
Input Phases 3
Output Phases 2
Output Current 12 Amps
Encl Rating IP65
Adj Brake Time 2 - 10 Secs
Width 400mm
Height 400mm
Depth 200mm
Frame Size 1
Weight 15.000000
Input Freq 50/60Hz
Max Temp 40 Deg C
Trip Class 10
Approvals CE
