Enclosed Star Delta Starter with DC Injection Brake Unit, 15kW

Generally a stocked item but please contact us for availability on + 44 (0)1686 688948

More Information
£1,303.32 £1,086.10

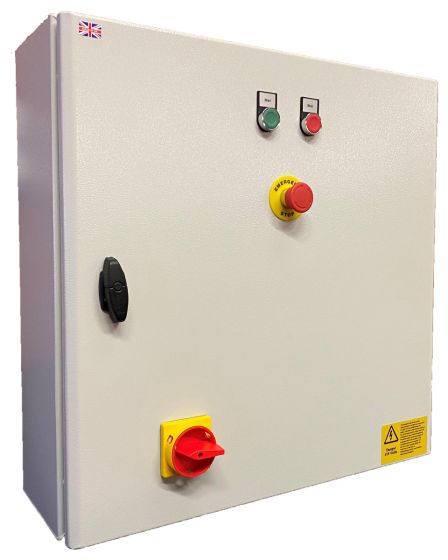

Enclosed DOL, DC Injection Brake Unit, 15kW, IP65

The Enclosed Solbrake Star Delta Motor Starter unit - Solid State Motor Brake provides fast, smooth, frictionless braking of three-phase squirrel-cage motors by injecting controlled DC current to the motor windings, after Mains contactor opened. This induces a stationary magnetic field, which exerts a braking torque on the rotor. Stopping time can be similar to the time it takes to reach full speed with Direct-On-Line starting. This unit is ready to go and just needs power and motor cables. Replacement for the Allen West Easy Brake.

The Solbrake can be used to help ensure your machine meets the HSE PUWER regulations PUWER regulations


- Robust IP65 enclosure.

- Key release E-Stop button.

- Tri rated cable.

- Adjustable DC Brake torque.

- Adjustable DC Brake time.

- Interlocked mains isolator.

- Input MCB/Fuses (option).


Before ordering, please call us for availability

Power kW 15kW
Power HP 20HP
Input Voltage 415V
Input Phases 3
Output Phases 3
Output Current 38 Amps
Encl Rating IP65
Adj Brake Time 2 - 10 Secs
Width 600mm
Height 600mm
Depth 200mm
Frame Size 1
Weight 22.000000
Input Freq 50/60Hz
Max Temp 40 Deg C
Trip Class 10
Approvals CE
