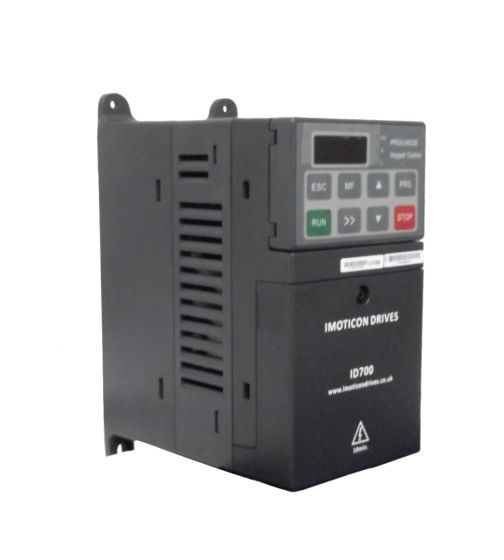

Imoticon ID700-20D00075 0.75kW Inverter
Imoticon, ID700-20D00075, 0.75kW, ID700, Imoticon inverter, AC inverter drive, 230V single or three phase input, 230V three phase output.
£142.56
£118.80
Imoticon ID700-20D00075 Inverter drive. 230V single or three phase input, 230V three phase output. Cost effective, easy to use inverter. Has just 20 default parameters to make simple and easy to use, but there are several more if you would like it to be more advanced.
Here is a link to the Imoticon website: https://www.imoticondrives.co.uk
NOTE: An inverter drive cannot be used as a 3 phase power supply for a machine. It is used to control the speed of a 3 phase motor.
Power kW
0.75
Power HP
1.0
Input Voltage
200-240V
Output Voltage
0 to input V
Input Phases
1 or 3
Output Phases
3
Output Current
5Amps
Input Current
1ph-12.8Amps
Encl Rating
IP20
Width
97.4mm
Height
202.4mm
Depth
148.8mm
Frame Size
A
Overload
150%
Duty
Heavy
Dynamic Braking
Yes
Weight
1.400000
Control Type
V/f and Open loop vector
Input Freq
48 - 62Hz
Output Freq
0-300Hz
Max Temp
40 Deg C
Digital Inputs
7
Digital Outputs
2
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
2
Serial Comms
Modbus RTU
Approvals
CE, UL
