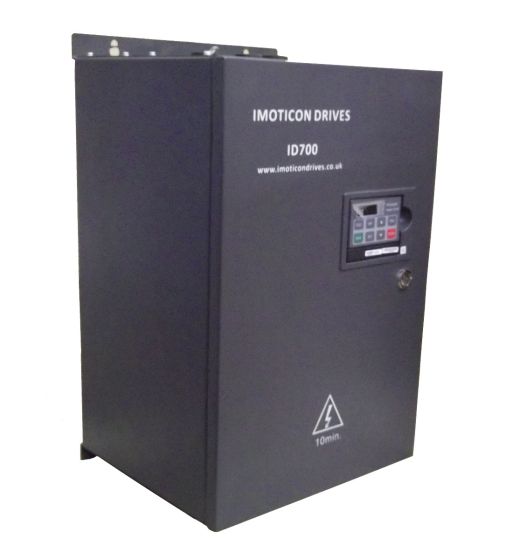

Imoticon ID700-40T03700 37kW Inverter

Imoticon,  ID700-40T03700, 37kW, ID700, Imoticon inverter, AC inverter drive, 400V three phase input, 400V three phase output.

More Information
£2,069.10 £1,724.25

Imoticon ID700-40T03700 Inverter drive. 400V three phase input, 400V three phase output. Cost effective, easy to use inverter. Has just 20 default parameters to make simple and easy to use, but there are several more if you would like it to be more advanced.

Here is a link to the Imoticon website: https://www.imoticondrives.co.uk







Power kW 37
Power HP 50
Input Voltage 380-480V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 75Amps
Input Current 72Amps
Encl Rating IP20
Width 355.5mm
Height 573mm
Depth 315.5mm
Frame Size F
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 40.000000
Control Type V/f and Open loop vector
Input Freq 48 - 62Hz
Output Freq 0-300Hz
Max Temp 40 Deg C
Digital Inputs 7
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 2
Serial Comms Modbus RTU
Approvals CE
