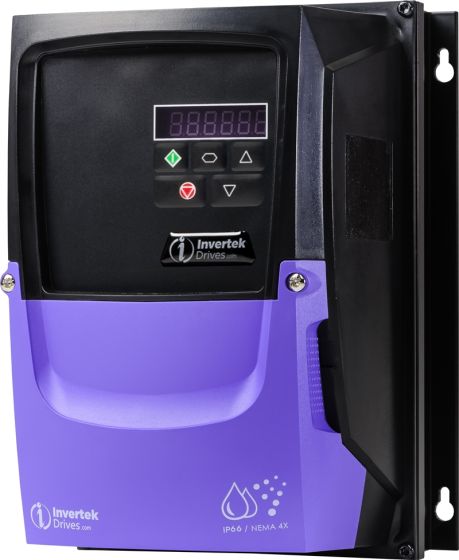

Invertek ODE-3-110023-101X Optidrive E3 (Replaced by ODE-3-110023-101A)

Invertek inverter drive, ODE-3-110023-101X, ODE-3, IP66 Non-switched, 0.37kW / 0.5HP, 110V single phase input, 230V three phase output, 2.3A output, Optidrive E3. Replaced by ODE-3-110023-101A

More Information

£221.92 £184.93

Details

Invertek ODE-3-110023-101X, E3, IP66 Non-switched, 0.37kW / 0.5HP, 110V single phase input, 230V three phase output voltage doubler inverter, 2.3A output. Ideal for wall mounting in damp and dusty environments. Indoor use only. Robust and easy to use. 14 parameters for basic setup. Here is a link to the Invertek website: http://www.invertekdrives.com

This unit has been replaced by the ODE-3-110023-101A E3 Outdoor Rated inverter. See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-110023-101a-optidrive-e3-outdoor-use.html

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

Downloads

Power kW 0.37kW

Power HP 0.5HP

Input Voltage 110V

Output Voltage 0 to 2 X input (230V)

Input Phases 1

Output Phases 3

Output Current 2.3Amps

Input Current 7.8Amps

Encl Rating IP66 Non-switched

Width 161mm

Height 232mm

Depth 179mm

Frame Size 1

Overload 150%

Duty Heavy

Dynamic Braking No

Weight 3.100000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL. cUL, C- Tick, ROHS
