Invertek ODE-3-110023-101Y Optidrive E3 (Replaced by ODE-3-110023-101B)

Invertek inverter drive, ODE-3-110023-101Y, ODE-3, IP66 Switched, 0.37kW / 0.5HP, 110V single phase input, 230V three phase output, 2.3A output, Optidrive E3.  Replaced by ODE-3-110023-101B

More Information
£276.25 £230.21

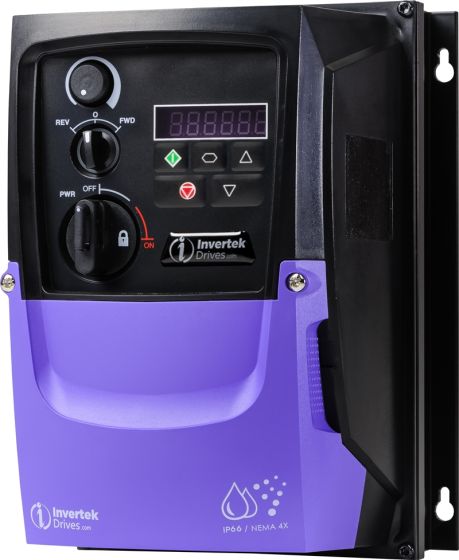

Invertek ODE-3-110023-101Y, E3, IP66 Switched, 0.37kW / 0.5HP, 110V single phase input, 230V three phase output voltage doubler inverter, 2.3A output.  On-board isolator, speed potentiometer and Forward-Stop-Reverse switch.  Ideal for wall mounting in damp and dusty environments.  Indoor use only.  Robust and easy to use. 14 parameters for basic setup. Here is a link to the Invertek website: http://www.invertekdrives.com

This unit has been replaced by the ODE-3-110023-101B E3 Outdoor Rated Inverter.  Please contact us for availability.  See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-110023-101b-optidrive-e3-outdoor-use.html

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

Power kW 0.37kW
Power HP 0.5HP
Input Voltage 110V
Output Voltage 0 to 2 X input (230V)
Input Phases 1
Output Phases 3
Output Current 2.3Amps
Input Current 7.8Amps
Encl Rating IP66 Switched
Width 161mm
Height 232mm
Depth 179mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 3.100000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
