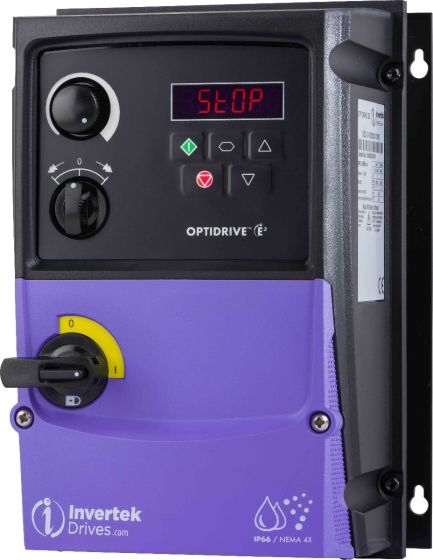

Invertek ODE-3-120023-1F1B Optidrive E3 0.37kW IP66 Switched Outdoor Rated VFD
The Invertek ODE-3-120023-1F1B Optidrive E3 is a robust, IP66 outdoor-rated variable frequency drive (VFD) designed to control 230V connected 3-phase motors from a standard 230V single-phase supply.
Engineered for harsh environments, this non-switched model features a sealed enclosure that protects against dust and water making it ideal for outdoor installations and industrial wash down environments.
With a 0.37kW (0.5HP) rating and 2.3A output, it delivers precise motor speed control while remaining compact, reliable, and easy to install.
Integral input mains isolator, speed potentiometer and forward-stop-reversed switch.
Key Features
✔ 0.37kW / 0.5HP output power
✔ 230V single-phase input → 230V three-phase output
✔ IP66 outdoor-rated (dust-tight & water resistant)
✔ Switched model with built in input mains isolator, speed potentiometer and Forward/Stop/Reverse switch
✔ Simple 14-parameter setup for fast commissioning
✔ Sensorless vector & V/F control
✔ Built-in EMC filter
✔ Modbus RTU & CANopen communication
✔ UV-stabilised enclosure for outdoor durability
- ✔ -20oC to +40oC operating ambient temperature (+50oC with de-rating)
Designed for ease of use, the Optidrive E3 can be installed and configured in minutes, reducing downtime and installation costs.
Designed for Outdoor & Harsh Environments
Unlike standard IP20 drives, this Optidrive E3 is suitable for outdoor mounting (subject to the required installation criteria being followed - see downloads), with a rugged enclosure that is:
Dust-tight
Resistant to water jets and washdown
Suitable for agricultural and industrial environments
The sealed design allows installation without additional panels or enclosures, reducing installation cost and complexity.
Can This Run a 3 Phase Motor from Single Phase?
Yes — this inverter allows you to run a 230V connected 3-phase motor from a standard 230V single-phase supply, making it perfect for:
Workshop motors without requiring 3-phase power
Retrofitting 230V connected 3 phase motors in place of single phase motors
Small industrial setups
Applications
Conveyor systems
Pumps & fans
HVAC systems
Small machinery & automation
Compressors
This inverter is particularly suited for applications requiring reliable speed control and energy efficiency without complex setup.
What’s the Difference: 1F1A vs 1F1B?
ODE-3-120023-1F1A
→ Non-switched (no built-in controls other than the keypad and control terminals)
→ Ideal for use when connected to control panels, remote buttons or automation systemsODE-3-120023-1F1B (This model)
→ Includes input mains isolator, speed potentiometer & forward/stop/reverse switch
Why Choose the Optidrive E3?
Fast installation – ready to run with minimal setup
IP66 outdoor rated plastics – suitable for plant room or external mounting
Flexible motor compatibility – supports multiple motor types
Cost-effective solution for industrial motor control
The Optidrive E3 series is widely trusted for its simplicity, durability, and performance in demanding environments.
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3
For further information on the Optidrive E3, please call our experienced technical support engineers who can help with your enquiry.
NOTE: An inverter drive cannot be used as a 3 phase power supply for a machine. It is used to control the speed of a 3 phase AC motor.
