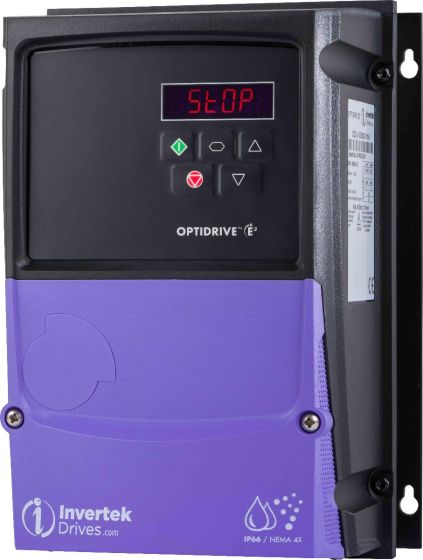

Invertek ODE-3-120043-1F1A Optidrive E3 (Outdoor Use)

Invertek Optidrive E3, ODE-3-120043-1F1A, 230V single (1) phase input, 230V three (3) phase output, 0.75kW, 4.3A output, IP66 Non-switched with internal EMC filter.

More Information
£186.36 £155.30

Invertek Optidrive E3, ODE-3-120043-1F1A, 230V single (1) phase input, 230V three (3) phase output, 0.75kW, 4.3A output, IP66 Non-switched with internal EMC filter.

Ideal for wall mounting in damp and dusty environments.

Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20oC to +40o C operating ambient temperature (+50oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

NOTE:  An inverter drive cannot be used as a 3 phase power supply for a machine.  It is used to control the speed of a 3 phase motor.

Power kW 0.75kW
Power HP 1HP
Input Voltage 240V
Output Voltage 0 to 240V
Input Phases 1
Output Phases 3
Output Current 4.3 Amps
Input Current 7.5 Amps
Encl Rating IP66 Non-Switched
Width 161mm
Height 232mm
Depth 155mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 2.500000
Control Type Simple vector or V/F mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
