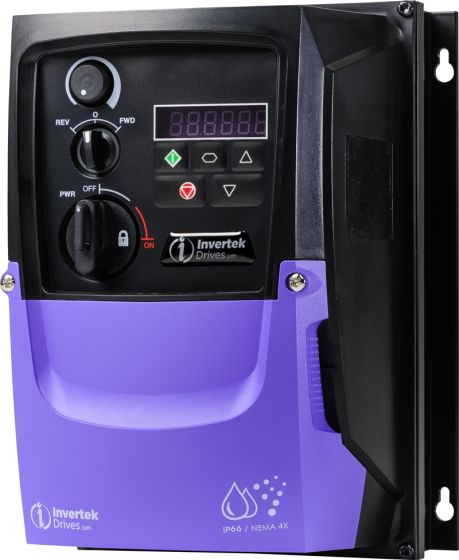

Invertek ODE-3-120043-1F1Y Optidrive E3 (Replaced by ODE-3-120043-1F1B)

Invertek inverter drive, ODE-3-120043-1F1Y, ODE-3, IP66 Switched, 0.75kW, 230V single phase input, 230V three phase output, 4.3A output, internal EMC filter, Optidrive E3.  Replaced by ODE-3-120043-1F1B

More Information
£265.73 £221.44

Invertek ODE-3-120043-1F1Y, E3, 0.75kW, IP66 Switched, 230V single phase input, 230V three phase output inverter, 4.3A output, internal EMC filter.  On-board isolator, speed potentiometer and Forward-Stop-Reverse switch.  Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-120043-1F1Y drives in stock.

We are replacing the ODE-3-120043-1F1Y 'Indoor rated' with the ODE-3-120043-1F1B 'Outdoor rated' inverter.  See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-120043-1f1b-optidrive-e3-outdoor-use.html

Power kW 0.75kW
Power HP 1HP
Input Voltage 240V
Output Voltage 0 to 240V
Input Phases 1
Output Phases 3
Output Current 4.3Amps
Input Current 7.5Amps
Encl Rating IP66 Switched
Width 161mm
Height 232mm
Depth 179mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 3.100000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
