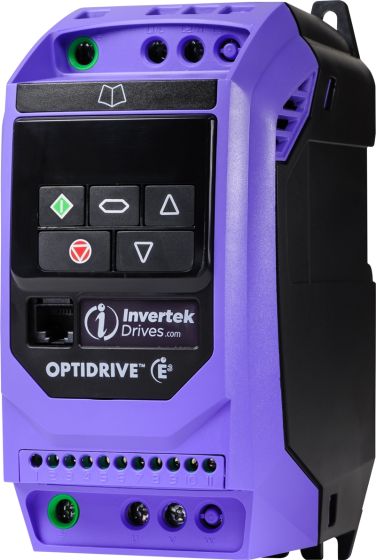

Invertek ODE-3-140022-3F12 Optidrive E3

Invertek ODE-3-140022-3F12, 0.75kW, 2.2A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal EMC filter.

More Information

£204.42 £170.35

Details

Invertek Optidrive E3, ODE-3-140022-3F12, 0.75kW, 2.2A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal EMC filter. Panel / cabinet mount.

Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

For further information on the Optidrive E3, please call our experienced technical support.

NOTE: An inverter drive cannot be used as a 3 phase power supply for a machine. It is used to control the speed of a 3 phase motor.

Downloads

Power kW 0.75kW

Power HP 1HP

Input Voltage 415V

Output Voltage 0 to input

Input Phases 3

Output Phases 3

Output Current 2.2Amps

Input Current 3.5Amps

Encl Rating IP20

Width 83mm

Height 173mm

Depth 123mm

Frame Size 1

Overload 150%

Duty Heavy

Dynamic Braking No

Weight 2.000000

Control Type Simple vector or V/F

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 50 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals CE, UL, C-Tick, ROHS
