Invertek ODE-3-140041-3F1B Optidrive E3 (Outdoor use)

Invertek ODE-3-140041-3F1B

More Information
£361.86 £301.55

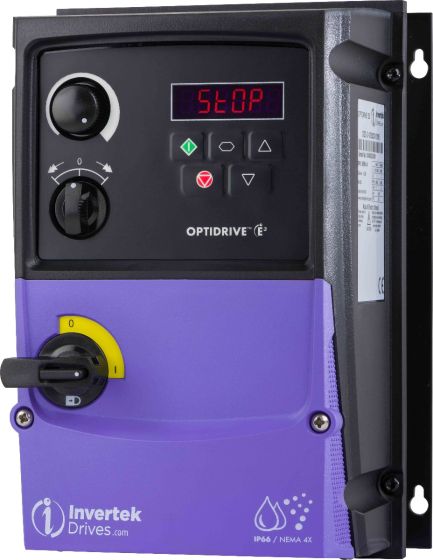

Invertek ODE-3-140041-3F1B, E3, 1.5kW, IP66 Switched, 400V three phase input, 400V three phase output inverter, 4.1A output, with internal EMC filter.

Integral isolator, speed potentiometer and Foward-Stop-Reverse switch.

Ideal for wall mounting in damp and dusty environments, Outdoor use (with installation criteria). Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20oC to +40o C operating ambient temperature (+50oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please call us for availability

Power kW 1.5kW
Power HP 2HP
Input Voltage 415V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 4.1 Amps
Input Current 5.6 Amps
Encl Rating IP66 Switched
Width 161mm
Height 232mm
Depth 155mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
MFR Invertek
Weight 2.1000
Control Type Simple vector or V/F mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
