Invertek ODE-3-210058-104Y Optidrive E3 (Replaced by ODE-3-210058-104B)

Invertek inverter drive, ODE-3-210058-104Y, ODE-3, IP66 Switched, 1.1kW / 1.5HP, 110V single phase input, 230V three phase output, 5.8A output, Optidrive E3. Replaced by ODE-3-210058-104B

More Information

£373.63 £311.36

Details

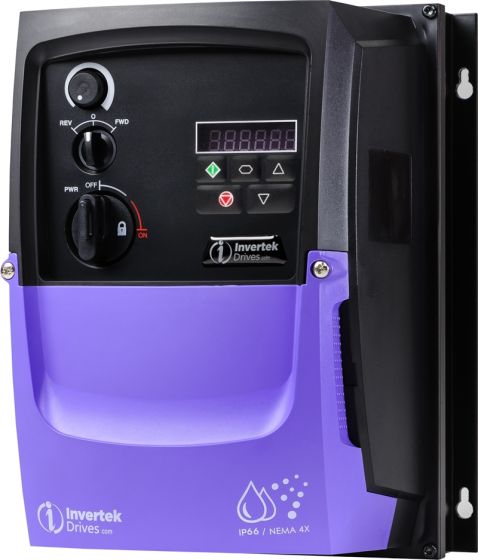

Invertek ODE-3-210058-104Y, E3, IP66 Switched, 1.1kW / 1.5HP, 110V single phase input, 230V three phase output voltage doubler inverter, 5.8A output. On-board isolator, speed potentiometer and Forward-Stop-Reverse switch. Ideal for wall mounting in damp and dusty environments. Indoor use only. Robust and easy to use. 14 parameters for basic setup. Here is a link to the Invertek website: http://www.invertekdrives.com

This unit has been replaced by the ODE-3-210058-104B E3 Outdoor Rated inverter. Please contact us for availability. See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-210058-104b-optidrive-e3-outdoor-use.html

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

Downloads

Power kW 1.1kW

Power HP 1.5HP

Input Voltage 110V

Output Voltage 0 to 2 X input (230V)

Input Phases 1

Output Phases 3

Output Current 5.8Amps

Input Current 21.9Amps

Encl Rating IP66 Switched

Width 188mm

Height 257mm

Depth 187mm

Frame Size 2

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 4.100000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
