Invertek ODE-3-220105-1F4X Optidrive E3 (Replaced by ODE-3-220105-1F4A)

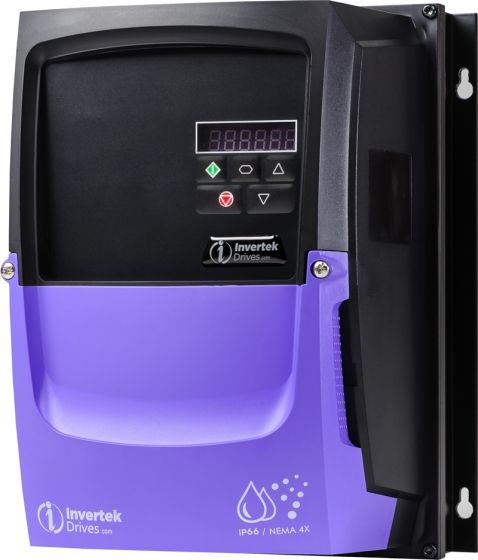

Invertek inverter drive, ODE-3-220105-1F4X, ODE-3, IP66 Non-switched, 2.2kW, 230V single phase input, 230V three phase output, 10.5A output, internal EMC filter, Optidrive E3.

More Information

£304.60 £253.83

Details

Invertek ODE-3-220105-1F4X, E3, 2.2kW, IP66 Non-switched, 230V single phase input, 230V three phase output inverter, 10.5A output, internal EMC filter. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.

We are replacing the ODE-3-220105-1F4X 'Indoor rated' with the ODE-3-220105-1F4A 'Outdoor rated' inverter. See link below:

https://www.motorcontrolwarehouse.co.uk/ode-3-220105-1f4a.html

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

Downloads

Power kW 2.2kW

Power HP 3HP

Input Voltage 240V

Output Voltage 0 to 240V

Input Phases 1

Output Phases 3

Output Current 10.5Amps

Input Current 19.2Amps

Encl Rating IP66 Non-switched

Width 188mm

Height 257mm

Depth 187mm

Frame Size 2

Overload 150%

Duty Heavy

Dynamic Braking Yes

Weight 4.100000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
