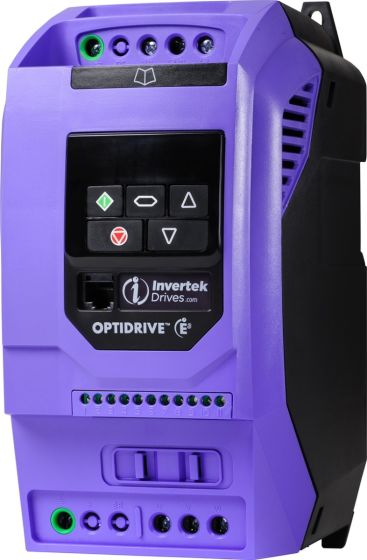

Invertek ODE-3-240058-3F42 Optidrive E3

Invertek Optidrive, ODE-3-240058-3F42, 2.2kW, 5.8A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal EMC filter and internal braking transistor.

More Information
£288.60 £240.50

Invertek Optidrive E3, ODE-3-240058-3F42, E3, 2.2kW, 5.8A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal EMC filter and internal braking transistor.  Panel / cabinet mount.

Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3.

For further information on the Optidrive E3, please call our experienced technical support engineers who can help with your enquiry.

NOTE:  An inverter drive cannot be used as a 3 phase power supply for a machine.  It is used to control the speed of a 3 phase motor.

Power kW 2.2kW
Power HP 3HP
Input Voltage 415V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 5.8Amps
Input Current 7.5Amps
Encl Rating IP20
Width 110mm
Height 221mm
Depth 150mm
Frame Size 2
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 1.700000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
