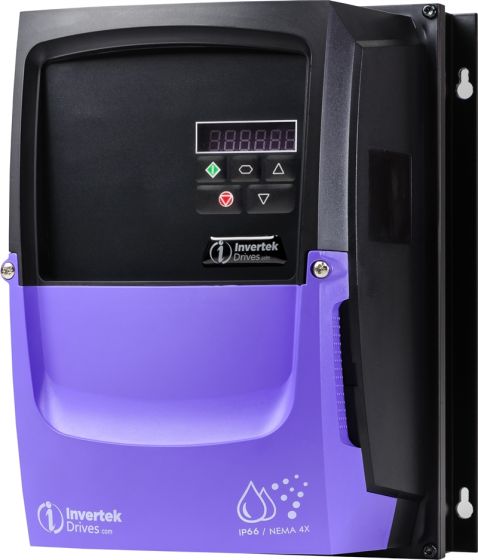

Invertek ODE-3-240095-3F4X Optidrive E3 (Replaced by ODE-3-240095-3F4A)

Invertek inverter drive, ODE-3-240095-3F4X, ODE-3, IP66 Non-switched, 4kW, 400V three phase input, 400V three phase output, 9.5A output, internal EMC filter, Optidrive E3.  Replaced by ODE-3-240095-3F4A

More Information
£384.28 £320.23

Invertek ODE-3-240095-3F4X, E3, 4kW, IP66 Non-switched, 400V three phase input, 400V three phase output inverter, 9.5A output, internal EMC filter.  Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.

Here is a link to the Invertek website:

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-240095-3F4X drives in stock.

We are replacing the ODE-3-240095-3F4X 'Indoor rated' with the ODE-3-240095-3F4A 'Outdoor rated' inverter.  See link below:


Power kW 4kW
Power HP 5HP
Input Voltage 415V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 9.5Amps
Input Current 11.5Amps
Encl Rating IP66 Non-switched
Width 188mm
Height 257mm
Depth 187mm
Frame Size 2
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 4.100000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
