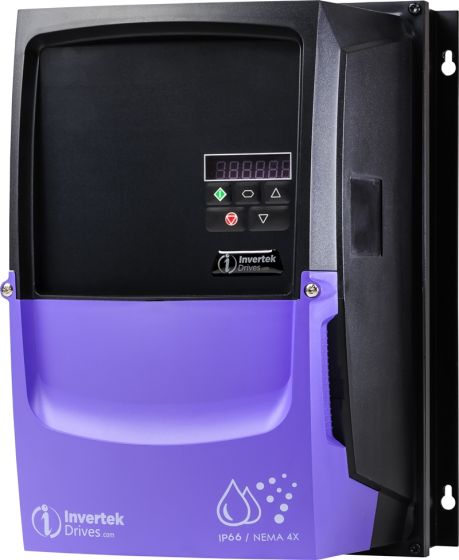

Invertek ODE-3-320153-104X Optidrive E3
Invertek inverter drive, ODE-3-320153-104X, ODE-3, IP66 Non-switched, 4kW, 230V single phase input, 230V three phase output, 15.3A output, Optidrive E3
£485.26
£404.38
Invertek ODE-3-320153-104X, E3, 4kW, IP66 Non-switched, 230V single phase input, 230V three phase output inverter, 15.3A output. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup.
Here is a link to the Invertek website: http://www.invertekdrives.com
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3
Power kW
4kW
Power HP
5HP
Input Voltage
240V
Output Voltage
0 to 240V
Input Phases
1
Output Phases
3
Output Current
15.3Amps
Input Current
29.2Amps
Encl Rating
IP66 Non-switched
Width
211mm
Height
310mm
Depth
252mm
Frame Size
3
Overload
150%
Duty
Heavy
Dynamic Braking
Yes
Weight
7.600000
Control Type
Simple vector or V/f mode
Input Freq
48-62Hz
Output Freq
0-500Hz
Max Temp
40 deg C
Digital Inputs
4
Digital Outputs
1
Analogue I/Ps
2
Analogue O/Ps
1
Output relay(s)
1
Serial Comms
Modbus RTU & CANOpen
Approvals
UL, cUL, C- Tick, ROHS
