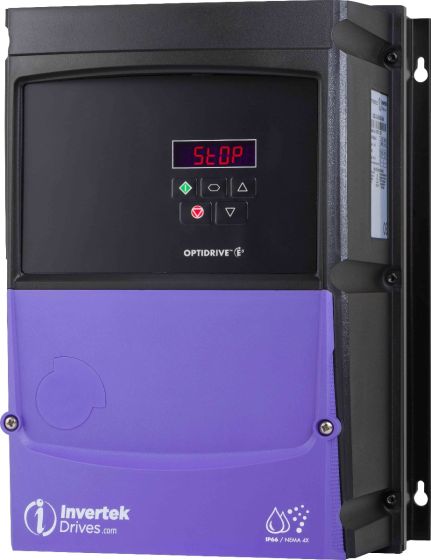

Invertek ODE-3-340140-3F4A Optidrive E3 (Outdoor Use)
Invertek Optidrive E3, ODE-3-340140-3F4A, 400V three (3) phase input, 400V three (3) phase output, 5.5kW, 14A output, IP66 Non-switched with internal EMC filter and internal braking transistor.
Invertek Optidrive E3, ODE-3-340140-3F4A, 400V three (3) phase input, 400V three (3) phase output, 5.5kW, 14A output, IP66 Non-switched with internal EMC filter and internal braking transistor.
Ideal for wall mounting in damp and dusty environments.
Robust and easy to use. 14 parameters for basic setup.
Suitable for external mounting, subject to the required installation criteria being followed (See downloads).
-20oC to +40o C operating ambient temperature (+50oC with de-rating).
Manufacturered with UV stabilsed plastics.
Here is a link to the Invertek website: http://www.invertekdrives.com
