Invertek ODE-3-340180-3F4Y Optidrive E3

Invertek inverter drive, ODE-3-340180-3F4Y, ODE-3, IP66 Switched, 7.5kW, 400V three phase input, 400V three phase output, 18A output, internal EMC filter, Optidrive E3.  Replaced by ODE-3-340180-3F4B

More Information
£674.36 £561.97

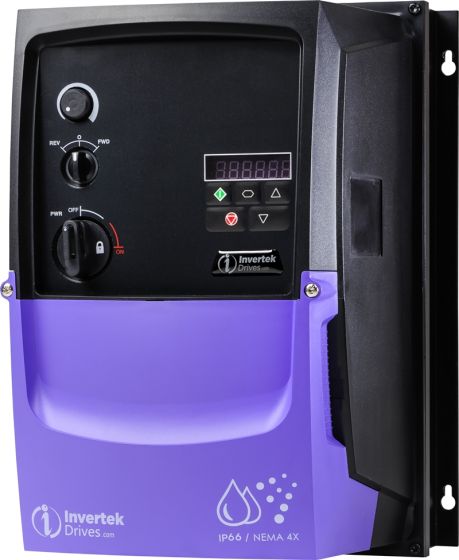

Invertek ODE-3-340180-3F4Y, E3, 7.5kW, IP66 Switched, 400V three phase input, 400V three phase output inverter, 18A output, internal EMC filter.  On-board isolator, speed potentiometer and Forward-Stop-Reverse switch.  Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup. Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-340180-3F4Y drives in stock.

We are replacing the ODE-3-340180-3F4Y 'Indoor rated' with the ODE-3-340180-3F4B 'Outdoor rated' inverter.  See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-340180-3f4b-optidrive-e3-outdoor-use.html



Power kW 7.5kW
Power HP 10HP
Input Voltage 415V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 18Amps
Input Current 21.2Amps
Encl Rating IP66 Switched
Width 211mm
Height 310mm
Depth 252mm
Frame Size 3
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 7.600000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
