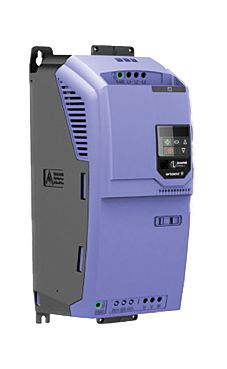

Invertek ODE-3-440460-3F42 Optidrive E3 22kW VFD
The Invertek ODE-3-440460-3F42 Optidrive E3 is a compact, variable frequency drive (VFD) designed for efficient control of 400V connected 3-phase motors. Ideal for industrial, HVAC, pump, and fan applications, this drive offers reliable performance with simple installation and rapid commissioning.
With its 22kW (30HP) rating, built-in EMC filter and internal braking transistor with intuitive setup, the Optidrive E3 provides precise motor speed control and energy savings in a robust, space-saving design.
Key Features
✔ 22kW / 30HP output power
✔ 400V 3-phase input → 400V 3-phase output
✔ 46A output current
✔ IP20 enclosure – ideal for panel mounting
✔ Simple 14-parameter setup for fast commissioning
✔ Sensorless vector & V/F motor control
✔ Built-in EMC filter
- ✔ Built-in braking transistor (external braking resistor required)
✔ Modbus RTU & CANopen communication support
✔ Energy-efficient operation with optimised motor control
Designed for ease of use, the Optidrive E3 can be installed and configured in minutes, reducing downtime and installation costs.
Applications
Conveyor systems
Pumps & fans
HVAC systems
Small machinery & automation
Compressors
This inverter is particularly suited for applications requiring reliable speed control and energy efficiency without complex setup.
Why Choose the Optidrive E3?
Fast installation – ready to run with minimal setup
Compact design – saves panel space
Flexible motor compatibility – supports multiple motor types
Cost-effective solution for industrial motor control
The Optidrive E3 series is widely trusted for its simplicity, durability, and performance in demanding environments.
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3
For further information on the Optidrive E3, please call our experienced technical support engineers who can help with your enquiry.
NOTE: An inverter drive cannot be used as a 3 phase power supply for a machine. It is used to control the speed of a 3 phase AC motor.
