Invertek OPT-2-E3016-20

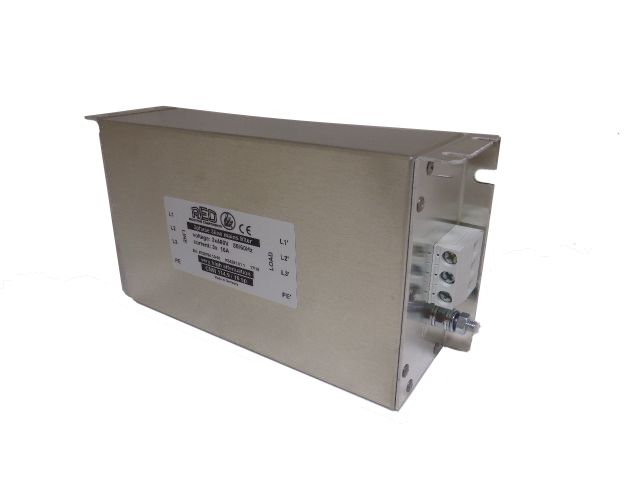

Invertek OPT-2-E3016-20 16A, 3 phase EMC filter

More Information
£279.00 £232.50

EMC filters reduce the transfer of electromagnetic noise between the drive and mains power supply. All Optidrives are fitted as standard with an internal EMC filter, except where specified by the customer, and for most industrial applications, this will be sufficient. In the event that a higher level of filtering is desired or required, the external EMC filter can be added to either a drive which already has the internal EMC filter, or a drive without EMC filter. Best performance is achieved by using a filtered drive and the appropriate external EMC filter.



Input Voltage 415V
Output Voltage 415V
Input Phases 3
Output Phases 3
Current 16Amps
Typ Grd Leak <35mA
Height 230mm
Depth 65mm
Width 120mm
IP Rating IP20
Model No CNW114.9/16
Weight 2.700000
