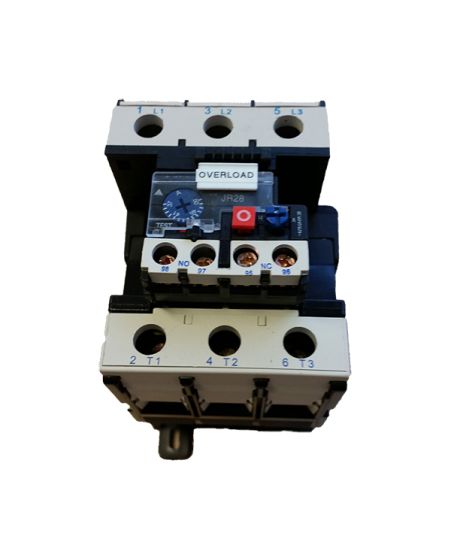

Motor Overload JR28-25 1310 4-6A, with Base

A range of motor thermal overloads with mounting bases covering the current range from 4 Amp to 104 Amps.
More Information
£11.70 £9.75

A motor thermal overload with mounting base covering the current range from 4 Amp to 6 Amps. These motor overloads are stand alone devices and can be din rail mounted. They have adjustable overload current and a manual or automatic reset facility. They also have a normally open and normally closed set of volt free contacts that change state after a trip.

Related Download 1 JR28 Thermal Overload Data

Related Download 2 JR28 Overload Dimensions

Trip Class 10
Input Voltage 415V
Output Voltage 415V
Input Phases 3
Output Phases 3
Overload 4 to 6 Amp range
Frame Size JR25-28
Width 45mm
Height 80mm
Depth 82mm
Weight 1.000000
Approvals CE
Model No JR28-25 1310 4-6
Mounting Type Din Rail
Frame Material Plastic
Poles 3
