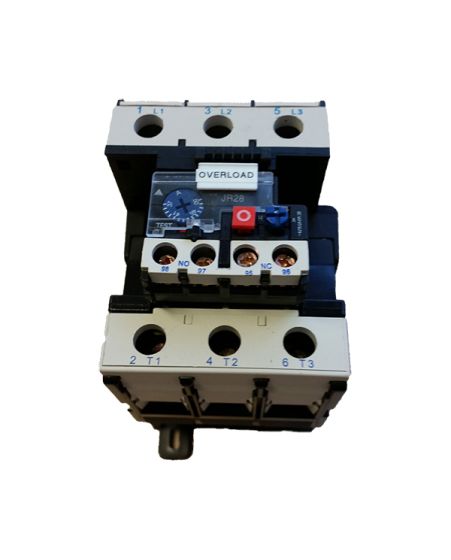

Motor Overload JR28-36 2355 30-40A, with Base

A range of motor thermal overloads with mounting bases covering the current range from 4 Amp to 104 Amps.
More Information
£17.70 £14.75

A motor thermal overload with mounting base covering the current range from 30 Amp to 40 Amps. These motor overloads are stand alone devices and can be din rail mounted. They have adjustable overload current and a manual or automatic reset facility. They also have a normally open and normally closed set of volt free contacts that change state after a trip.

Related Download 1 JR28 Thermal Overload Data

Related Download 2 JR28 Overload Dimensions

Trip Class 10
Input Voltage 415V
Output Voltage 415V
Input Phases 3
Output Phases 3
Overload 30 to 40 Amp range
Frame Size JR28-36
Width 64mm
Height 83mm
Depth 83mm
Weight 1.000000
Approvals CE
Model No JR28-36 2355 30-40
Mounting Type Din Rail
Frame Material Plastic
Poles 3
