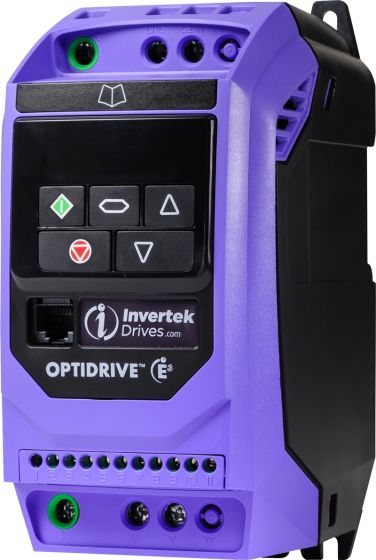

Invertek ODE-3-110070-1F12-01 Optidrive E3

Invertek Optidrive E3, ODE-3-110070-1F12-01, frame size 1, IP20, 0.37kW / 0.5HP, 7A, 110V single (1) phase input, 110V single (1) phase output inverter.

More Information
£246.42 £205.35

Invertek Optidrive E3, ODE-3-110070-1F12-01, frame size 1, 0.37kW / 0.5HP, 7A, 110V single (1) phase input, 110V single (1) phase output inverter, cabinet/panel mount.  IP20 with internal EMC filter.

Ideal for low starting torque loads such as pumps and fans.

Robust and easy to use. 14 Parameter basic setup.

Here is a link to the Inverte website: http://www.invertekdrives.com

Please call us for availability

Please see our Knowledge Base section of the website for further technical & setup information for the Optidrive E3

NOTE: For use with permanent capacitor single phase motors (NOT twin capacitor motors).

NOTE: Please check that the single phase motor is inverter rated























Power kW 0.37
Power HP 0.5
Input Voltage 110V
Output Voltage 0 to input V
Input Phases 1
Output Phases 1
Output Current 7Amps
Input Current 8.5Amps
Encl Rating IP20
Width 82mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Light
Dynamic Braking No
Weight 1.000000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
