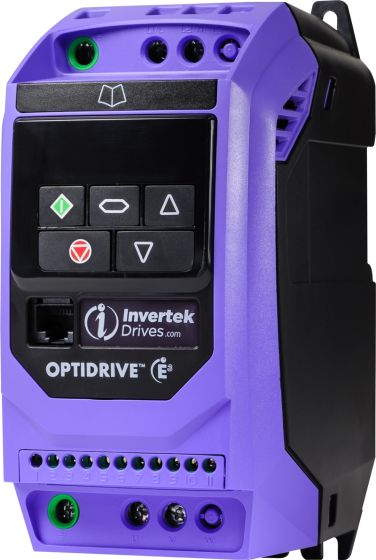

Invertek ODE-3-120043-1F12-01 Optidrive E3

Invertek Optidrive E3, ODE-3-120043-1F12-01, frame size 1, IP20, 0.37kW / 0.5HP, 4.3A, 230V single (1) phase input, 230V single (1) phase output inverter

More Information
£217.56 £181.30

Invertek Optidrive E3, ODE-3-120043-1F12-01, frame size 1, 0.37kW / 0.5HP, 4.3A, 230V single (1) phase input, 230V single (1) phase output inverter, IP20 panel mount with internal EMC filter.

Ideal for low starting torque loads such as pumps and fans.

Robust and easy to use. 14 Parameter basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please call us for availability

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

NOTE: For use with permanent capacitor single phase motors (NOT twin capacitor motors).

NOTE:  Please check that the single phase motor is inverter rated





Power kW 0.37
Power HP 0.5
Input Voltage 240V
Output Voltage 0 to input V
Input Phases 1
Output Phases 1
Output Current 4.3Amps
Input Current 6.0Amps
Encl Rating IP20
Width 83mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Light
Dynamic Braking No
Weight 1.000000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
