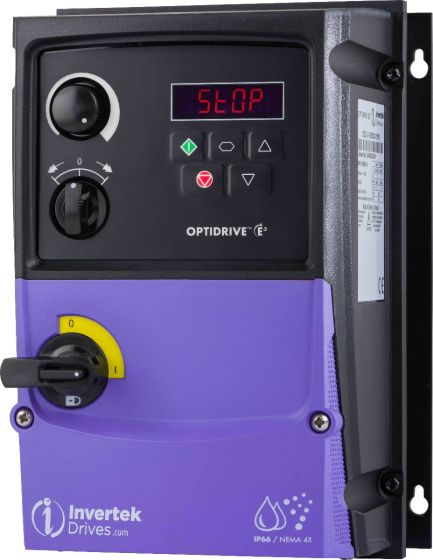

Invertek ODE-3-120070-1F1B-01 Optidrive E3 (Outdoor Use)

Invertek Optidrive E3, ODE-3-120070-1F1B-01,230V single (1) phase input, 230V single (1) phase output, 0.75kW, 1HP, 7A output, IP66 switched with internal EMC filter.

More Information
£357.42 £297.85

Invertek Optidrive E3, ODE-3-120070-1F1B-01, 230V single (1) phase input, 230V single (1) phase output, 0.75kW, 1HP, 7A output, IP66 switched with internal EMC filter.

Integral speed potentiometer, Forward-Stop-Reverse switch and mains isolator.

Ideal for wall mounting in damp and dusty environments. Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20oC to +40o C operating ambient temperature (+50oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please contact us for availability.

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

NOTE: For use with permanent capacitor single phase motors (NOT twin capacitor motors).

NOTE:  Please check that the single phase motor is inverter rated

Power kW 0.75
Power HP 1
Input Voltage 240V
Output Voltage 0 to input V
Input Phases 1
Output Phases 1
Output Current 7Amps
Input Current 9.3Amps
Encl Rating IP66
Width 161mm
Height 232mm
Depth 179mm
Frame Size 1
Overload 150%
Duty Light
Dynamic Braking No
Weight 3.100000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
