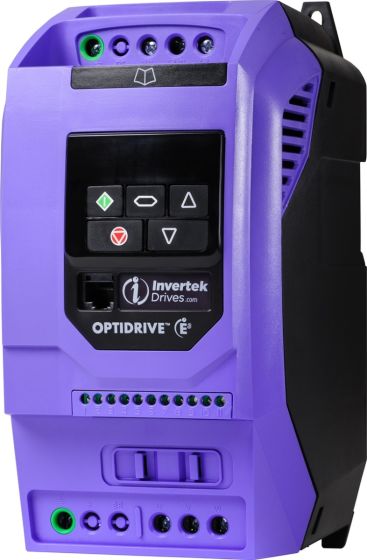

Invertek ODE-3-220105-1F42-01 Optidrive E3

Invertek Optidrive E3, ODE-3-220105-1F42-01, frame size 2, IP20, 1.1kW /1.5HP, 10.5A, 230V single (1) phase in, 230V single (1) phase output inverter

More Information
£310.80 £259.00

Invertek Optidrive E3, ODE-3-220105-1F42-01, frame size 2, IP20, 1.1kW / 1.5HP, 10.5A, 230V single (1) phase input, 230V single (1) phase output inverter, cabinet/panel mount. IP20 with internal EMC filter and braking transistor.

Ideal for low starting torque loads such as pumps and fans.

Robust and easy to use. 14 Parameter basic setup.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please call us for availability

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

NOTE: For use with permanent capacitor single phase motors (NOT twin capacitor motors).

NOTE: Please check that the single phase motor is inverter rated

Power kW 1.1
Power HP 1.5
Input Voltage 240V
Output Voltage 0 to input
Input Phases 1
Output Phases 1
Output Current 10.5Amps
Input Current 14.0Amps
Encl Rating IP20
Width 110mm
Height 221mm
Depth 150mm
Frame Size 2
Overload 150%
Duty Light
Dynamic Braking Yes
Weight 1.700000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
