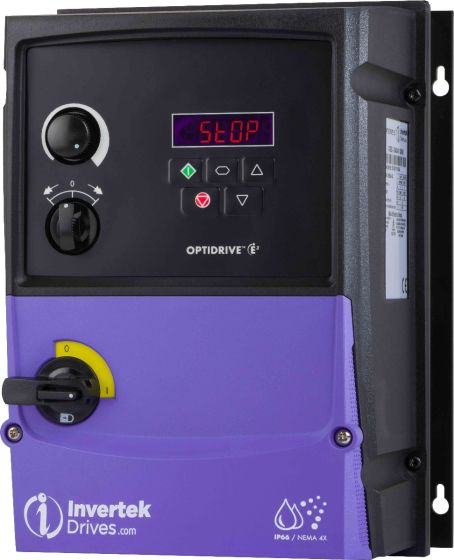

Invertek ODE-3-220105-1F4B-01 Optidrive E3

Invertek Optidrive E3, ODE-3-220105-1F4B-01,230V single (1) phase input, 230V single (1) phase output, 1.1kW, 1.5HP, 10.5A output, IP66 switched with internal EMC filter.

More Information
£472.86 £394.05

Invertek Optidrive E3, ODE-3-220105-1F4B-01, 230V single (1) phase input, 230V single (1) phase output, 1.1kW, 1.5HP, 10.5A output, IP66 switched with internal EMC filter.

Integral speed potentiometer, Forward-Stop-Reverse switch and mains isolator.

Ideal for wall mounting in damp and dusty environments. Robust and easy to use. 14 parameters for basic setup.

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20oC to +40o C operating ambient temperature (+50oC with de-rating).

Manufacturered with UV stabilsed plastics.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please contact us for availability.

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

NOTE: For use with permanent capacitor single phase motors (NOT twin capacitor motors).

NOTE:  Please check that the single phase motor is inverter rated





Power kW 1.1
Power HP 1.5
Input Voltage 240V
Output Voltage 0 to input
Input Phases 1
Output Phases 1
Output Current 10.5Amps
Input Current 14.0Amps
Encl Rating IP66
Width 188mm
Height 257mm
Depth 180mm
Frame Size 2
Overload 150%
Duty Light
Dynamic Braking Yes
Weight 3.500000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 40 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
