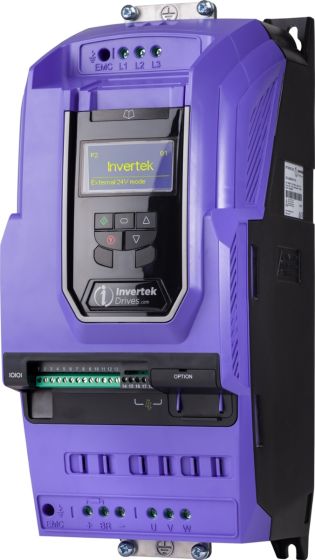

Invertek ODP-2-44185-3KF42-TN/MN Optidrive P2

Invertek Optidrive P2, ODP-2-44185-3KF42-TN/MN, 400V 3 phase input, 400V 3 phase output, 18.5kW, IP20, high performance inverter drive

More Information
£1,790.10 £1,491.75

Invertek Optidrive P2, ODP-2-44185-3KF42-TN/MN, 400V 3 phase input, 400V 3 phase output, 18.5kW, IP20 inverter.

TFT or OLED text display.

High performance open loop vector or V/f control.

Internal EMC filter and brake transistor.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2



Power kW 18.5
Power HP 25
Input Voltage 415V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 39Amps
Input Current 47Amps
Encl Rating IP20
Width 160mm
Height 418mm
Depth 240mm
Frame Size 4
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 9.200000
Control Type V/f and Open loop vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, Gost R, ROHS
