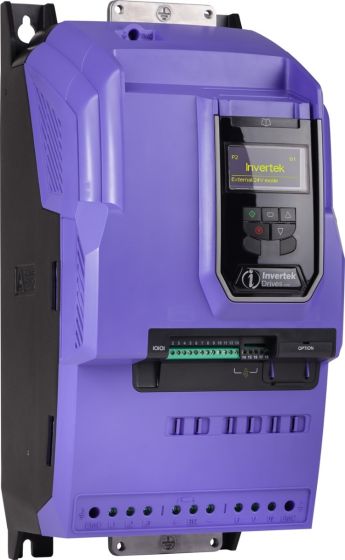

Invertek ODP-2-54300-3KF42-TN/MN Optidrive P2

Invertek Optidrive P2, ODP-2-54300-3KF42-TN/MN, 400V 3 phase input, 400V 3 phase output, 30kW, IP20, high performance inverter drive

More Information
£2,351.70 £1,959.75

Invertek Optidrive P2, ODP-2-54300-3KF42-TN/MN, 400V 3 phase input, 400V 3 phase output, 30kW, IP20 inverter.

TFT or OLED text display.

High performance open loop vector or V/f control.

Internal EMC filter and brake transistor.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2



Power kW 30
Power HP 40
Input Voltage 415V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 61Amps
Input Current 63.8Amps
Encl Rating IP20
Width 222mm
Height 486mm
Depth 260mm
Frame Size 5
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 18.100000
Control Type V/f and Open loop vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, Gost R, ROHS
