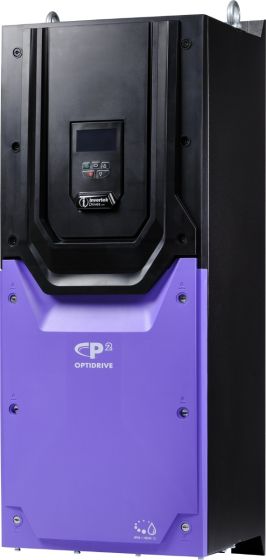

Invertek ODP-2-64090-3KF4N-TN/MN Optidrive P2

Invertek Optidrive P2, ODP-2-64090-3KF4N-TN/MN, 400V 3 phase input, 400V 3 phase output, 90kW, IP55 Non-switched, high performance inverter drive

More Information
£6,512.40 £5,427.00

Invertek Optidrive P2, ODP-2-64090-3KF4N-TN/MN, 400V 3 phase input, 400V 3 phase output, 90kW, IP55 Non-switched inverter.

TFT or OLED text display.

High performance open loop vector or V/f control.

Internal EMC filter and brake transistor.

IP55 is protection against low pressure jets of water and harmful deposits of dust.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive P2



Power kW 90
Power HP 120
Input Voltage 415V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 180Amps
Input Current 183.7Amps
Encl Rating IP55
Width 330mm
Height 865mm
Depth 340mm
Frame Size 6
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 50.000000
Control Type Open loop vector or V/f
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, ROHS
