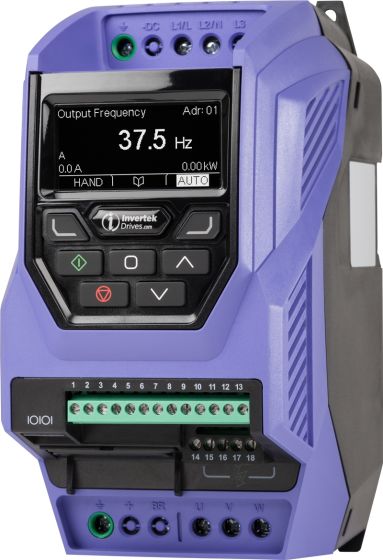

Invertek ODV-3-220105-1F12-MN Optidrive ECO 2.2kW VFD

Key Features

• ✔ 2.2kW / 3HP output power

• ✔ 230V single-phase input → 230V three-phase output

• ✔ 10.5A output current

• ✔ SIL2 Safe Torque Off (STO) input

• ✔ IP20 enclosure – ideal for panel mounting

• ✔ TFT text display for easy setup and diagnostics

• ✔ Built-in EMC filter

• ✔ Modbus RTU & BACNET MS/TP communication on-board

• ✔ BACNET IP, DeviceNet, EtherCAT. Ethernet IP, Modbus TCP/IP & Profinet plug-in option modules

• ✔ Control for all motor types: IE2, 3 & 4 induction motor, AC PM Permanent Magnet motors, BLDC    Brushless DC motors, SynRM Synchronous Reluctance motors & LSPM Line Start PM motors

• ✔ Energy-efficient operation with optimised motor control

The Optidrive Eco series is purpose-built for systems where energy savings and process optimisation are required.

Ideal for:

• HVAC systems
• Pump control systems
• Fans & ventilation
• Water treatment
• Building management systems

The Optidrive Eco includes the following built-in functionality:

• PID control for pressure & flow regulation
• Optiflow multi-pump control (cascade systems)
• Sleep & wake energy-saving functions
• Pump protection (dry run & blockage detection)
• Pump clean functions
• Fire mode to ensure continuous operation in emergency conditions
• PLC function block programming facility using Optitools Studio

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive ECO
