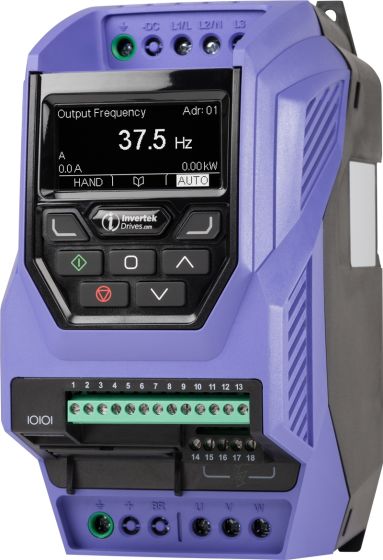

Invertek ODV-3-240022-3F12-MN Optidrive ECO 0.75kW VFD
The Invertek ODV-3-240022-3F12-MN Optidrive ECO is a high-efficiency, variable frequency drive (VFD) designed specifically for HVAC, centrifugal fan and pump applications.
Designed for control of 400V connected 3-phase motors.
Key Features
- ✔ 0.75kW / 1HP output power
- ✔ 400V 3-phase input → 400V 3-phase output
- ✔ 2.2A output current
- ✔ SIL2 Safe Torque Off (STO) input
- ✔ IP20 enclosure – ideal for panel mounting
- ✔ TFT text display for easy setup and diagnostics
- ✔ Built-in EMC filter
- ✔ Modbus RTU & BACNET MS/TP communication on-board
- ✔ BACNET IP, DeviceNet, EtherCAT. Ethernet IP, Modbus TCP/IP & Profinet plug-in option modules
- ✔ Control for all motor types: IE2, 3 & 4 induction motor, AC PM Permanent Magnet motors, BLDC Brushless DC motors, SynRM Synchronous Reluctance motors & LSPM Line Start PM motors
- ✔ Energy-efficient operation with optimised motor control
The Optidrive Eco series is purpose-built for systems where energy savings and process optimisation are required.
Ideal for:
- HVAC systems
- Pump control systems
- Fans & ventilation
- Water treatment
- Building management systems
The Optidrive Eco includes the following built-in functionality:
- PID control for pressure & flow regulation
- Optiflow multi-pump control (cascade systems)
- Sleep & wake energy-saving functions
- Pump protection (dry run & blockage detection)
- Pump clean functions
- Fire mode to ensure continuous operation in emergency conditions
- Built-in PLC function block programming facility using Optitools Studio
Optidrive Eco HVAC 400V 3 phase models up to frame size 5 are designed with film capacitors, replacing the traditional electrolytic capacitors used in the DC link. Film capacitors have lower losses, and also remove the need for AC, DC or swinging chokes, improving overall drive efficiency.
Efficiency is improved by up to 4% compared to standard AC drives, whilst also reducing supply current total harmonic distortion (iTHD), improving the Real Power Factor and reducing total input current, leading to cost savings on installation through reduced cable and fuse ratings and smaller supply transformer rating.
Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive ECO
