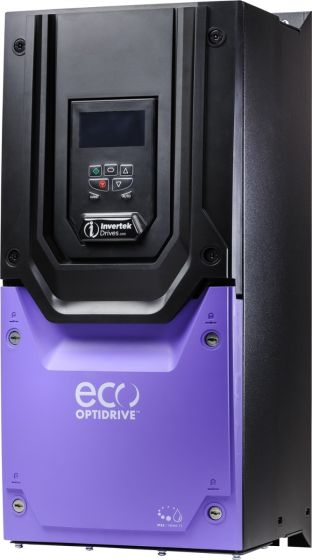

Optidrive ECO ODV-3-540610-3F1N-TN/MN

Invertek Optidrive ECO, ODV-3-540610-3F1N-TN/MN 400V 3 phase input, 400V 3 phase output, 61A, 30kW, IP55 Non-switched dedicated centrifugal Fan & Pump inverter drive

More Information
£2,370.60 £1,975.50

Invertek Optidrive ECO, ODV-3-540610-3F1N-TN/MN 400V 3 phase input, 400V 3 phase output, 61A, 30kW, IP55 Non-switched dedicated centrifugal Fan & Pump inverter drive.

Quadratic voltage / frequency output for energy optimisation.

Internal PID feedback loop for flow / level / temperature control.

TFT or OLED text display with HAND and AUTO buttons on keypad.

On-board RFI filter.

IP55 protects from dust and jets of water.

Here is a link to the Invertek website: http://www.invertekdrives.com



15kW Optidrive ECO Inverter Energy Saving Demostration Video



Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive ECO





Power kW 30
Power HP 40
Input Voltage 415V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 61Amps
Input Current 48.2Amps
Encl Rating IP55
Width 235mm
Height 540mm
Depth 270mm
Frame Size 5
Overload 110%
Duty Normal
Dynamic Braking No
Weight 23.100000
Control Type ECO Vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 40 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2
Serial Comms Modbus, Bacnet
Approvals UL. cUL, C- Tick, Gost R, ROHS
