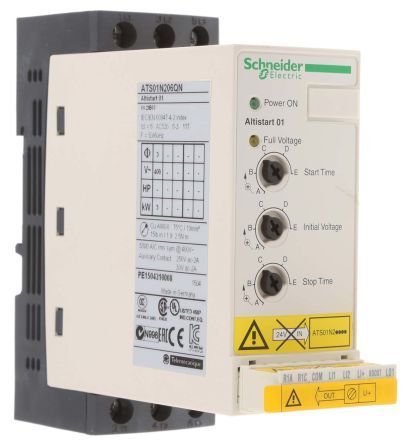

Schneider ATS01N222QN- 11kW Digital Soft Starter

The Altistart 01 soft starter operates either as a torque limiter on starting, or as a soft start/soft stop unit for asynchronous motors. Using the Altistart 01 starter enhances the starting performance of asynchronous motors by allowing them to start gradually, smoothly, and in a controlled manner. It helps to prevent mechanical shocks, which cause wear and tear, and subsequent maintenance work and production downtime.

More Information
£231.60 £193.00

The Altistart 01 soft starter operates either as a torque limiter on starting, or as a soft start/soft stop unit for asynchronous motors. Using the Altistart 01 starter enhances the starting performance of asynchronous motors by allowing them to start gradually, smoothly, and in a controlled manner. It helps to prevent mechanical shocks, which cause wear and tear, and subsequent maintenance work and production downtime.

Altistart 01 soft start/soft stop units (ATS01N2ppp) are equipped with:

  • A potentiometer 6 for setting the starting time
  • A potentiometer 8 for setting the deceleration time
  • A potentiometer 7 for adjusting the starting voltage threshold according to the motor load
  • 1 green LED 4 to indicate that the unit is powered up
  • 1 yellow LED 5 to indicate that the motor is powered at nominal voltage, if it is connected to the starter
  • Connector 9 for: - 2 logic inputs for Run/Stop commands - 1 logic input for the BOOST function - 1 logic output to indicate the end of starting - 1 relay output to indicate the motor has reached a standstill at the end of the deceleration stage

Power Dissipation - 64 Watts (transient state)
Power Dissipation - 4 Watts (at end of starting and at full load)

Number of phases controlled - 2

Rated at -10C to  40C Ambient.

Input Voltage 415V
Output Voltage 415V
Input Phases 3
Output Phases 3
Power kW 11kW
Encl Rating IP20
Output Current 22A
Width 45mm
Height 124mm
Depth 175mm
Weight 0.6000
Frame Size 0
Input Freq 50/60Hz
Output Freq 50/60Hz
Max Temp 40 deg C
Digital Inputs 3
Digital Outputs 1
Analogue I/Ps 0
Analogue O/Ps 0
Output relay(s) 1
Model No ATS01N222QN
Approvals CE
