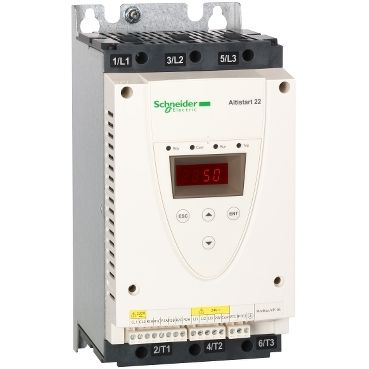

Schneider ATS22D47Q - 22kW Digital Soft Starter

Scheider Altistart ATS - Please check stock prior to ordering

More Information
£570.24 £475.20

Scheider Altistart ATS - Please check stock prior to ordering

The ATS is a simple to use, three phase digital softstart with embedded bypass function for a wide range of applications.Complete with adjustable electronic overload and fieldbus communications.

Compact size
Simple connection
Easy to commission
Built-in bypass
3 programmable logic inputs
1 PTC input
2 relay outputs
Motor thermal protection
Overvoltage protection

Designed for pumps and fans

Control circuit voltage - 230Vac 50/60Hz

Start with torque control (current limited to 3.5 In)

Input Voltage 230 - 440V
Output Voltage 0 to input
Input Phases 3
Output Phases 3
Power kW 22
Encl Rating IP20
Output Current 47Amp
Width 130mm
Height 209mm
Depth 265mm
Weight 5.500000
Frame Size A
Input Freq 50-60Hz
Output Freq 50-60Hz
Max Temp 40 deg C
Digital Inputs 3
Digital Outputs 0
Analogue I/Ps 1 PTC
Analogue O/Ps 0
Output relay(s) 2
Model No ATS22D47Q
Approvals CE, C-Tick, GOST, CSA, UL, CCC
