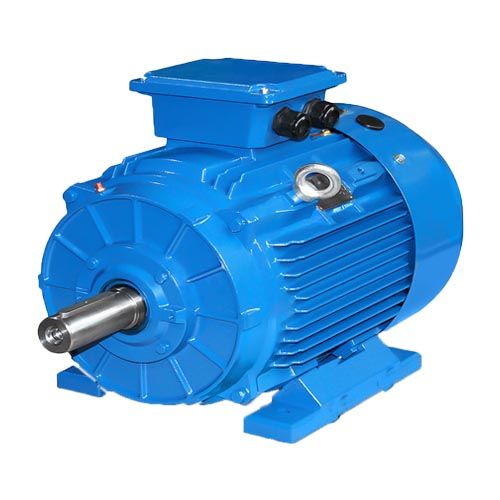

TEC Spartan, 3 Phase, 15kW, 4 pole, IE3 Premium Robust Motor

£1,162.20 £968.50

T3C, Cast Iron frame, 3 phase, 15kW, 4 pole, 160L1 frame, IE3 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

See brochure in downloads section for full specification

NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.

Power kW 15

Power HP 20

Input Phases 3

Poles 4

Slip Speed 1450rpm

Frame Size 160L1

Model No T3C-160L1-4

Frame Material Cast Iron

Shaft Diameter 42mm

Current 200V N/A

Current 400V 27.5Amps

Weight 160.000000

Width 316mm

Depth 650mm

Height 404mm

Input Volts Delta 400V

Input Volts Star 690V

Encl Rating IP55

Efficiency IE3

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE, WIMES 3.03 Compliant
