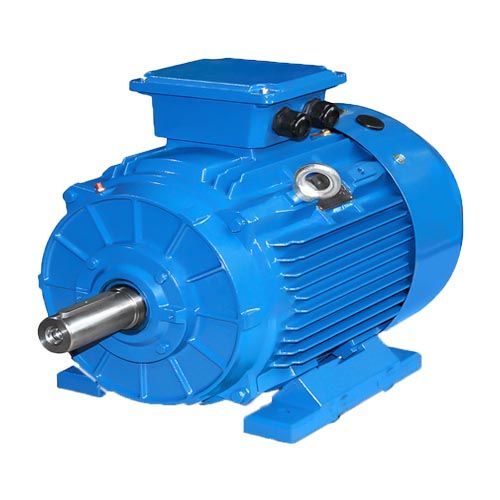

TEC Spartan, 3 Phase, 200kW, 4 pole, IE4 Premium Robust Motor

£11,924.16 £9,936.80

T3C, Cast Iron frame, 3 phase, 200kW, 4 pole, 315L2 frame, IE4 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

See brochure in downloads section for full specification

NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.

Power kW 200

Power HP 270

Input Phases 3

Poles 4

Slip Speed 1480rpm

Frame Size 315L2

Model No T4C-315L2-4

Frame Material Cast Iron

Shaft Diameter 80mm

Current 200V N/A

Current 400V 338Amps

Weight 1400.000000

Width 628mm

Depth 1385mm

Height 825mm

Input Volts Delta 400V

Input Volts Star 690V

Encl Rating IP55

Efficiency IE4

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE, WIMES 3.03 Compliant
